Hybrid · Battery-ready

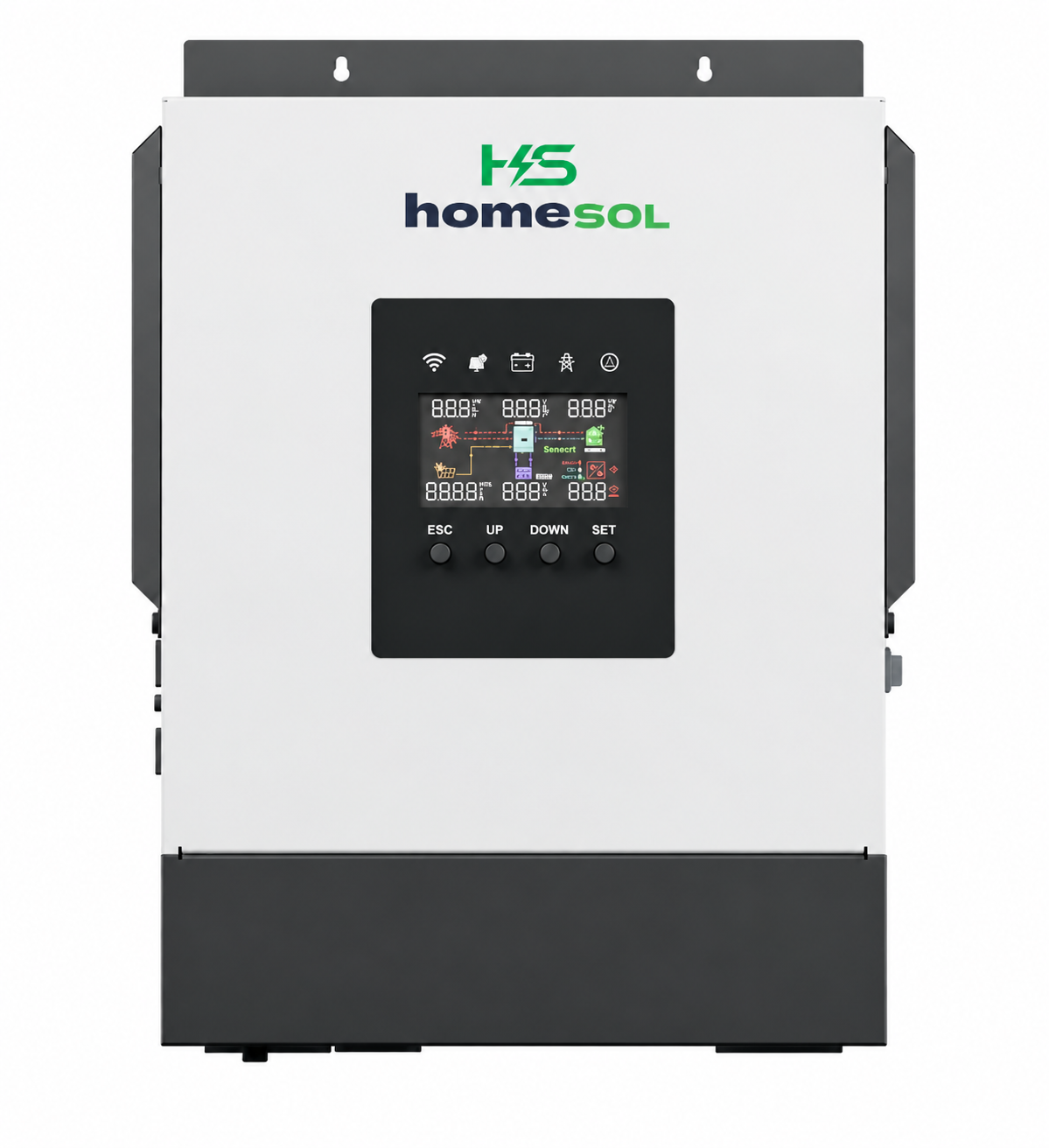

NS 2.5K / 3.5K Hybrid Inverter
NS-2.5K-OG01LP1-EU21-AM1 / NS-3.5K-OG01LP1-EU21-AM1
Battery-ready hybrid inverter family with high-voltage PV input, Wi-Fi/GPRS support and lithium-battery communication.
2.5 / 3.5kWRated Output
24VDCBattery
92–94%Conversion Efficiency
Technical Specifications
Specifications use the latest company-confirmed website values. Where an older catalog differs, the current confirmed HOMESOL specification takes precedence.
| Parameter | Catalog specification |
|---|---|
| Phase | Single phase |
| Maximum PV Input Power | 4000W / 6000W |
| Rated Output Power | 2500W/2500VA / 3500W/3500VA |
| Nominal / Maximum DC Voltage | 360VDC / 500VDC |
| MPPT Voltage Range | 60-430VDC |
| Maximum PV Input Current | 18A |
| Nominal AC Output Voltage | 220/230/240VAC |
| Battery Nominal Voltage | 24VDC |
| Conversion Efficiency | 92–94% |
| Maximum Solar Charging Current | 100A |
| Maximum AC Charging Current | 80A |
| Maximum Charging Current | 120A |
| Dimensions (D×W×H) | 345×275×100 mm |
| Communication | RS232 / RS485 / WiFi / BMS |
| Operating Temperature | 0°C to 55°C |
Source: current HOMESOL confirmed product information. Please confirm the final order configuration with sales before purchase.
Key Features
Product functions and selling points stated in the HOMESOL catalog.
Pure sine wave solar inverter (on/off grid)
Wi-Fi & GPRS available for iOS and Android
Dual communication ports for battery and Wi-Fi communication
Smart battery charge design
Offline upgrade through COMM port
Lithium-battery information display in APP
Output power factor 1.0
One-key restoration to factory settings
Built-in lithium-battery automatic activation
Built-in MPPT solar charge
Built-in anti-dust kit for harsh environments
